Suitable for infrastructure construction, industrial applications, dock operations, urban streets, residential areas, barns, livestock sheds, airport runways, and similar settings; it also serves as auxiliary equipment for heavy construction machinery.
Supports OEM/ODM modifications to meet different working conditions and project needs.

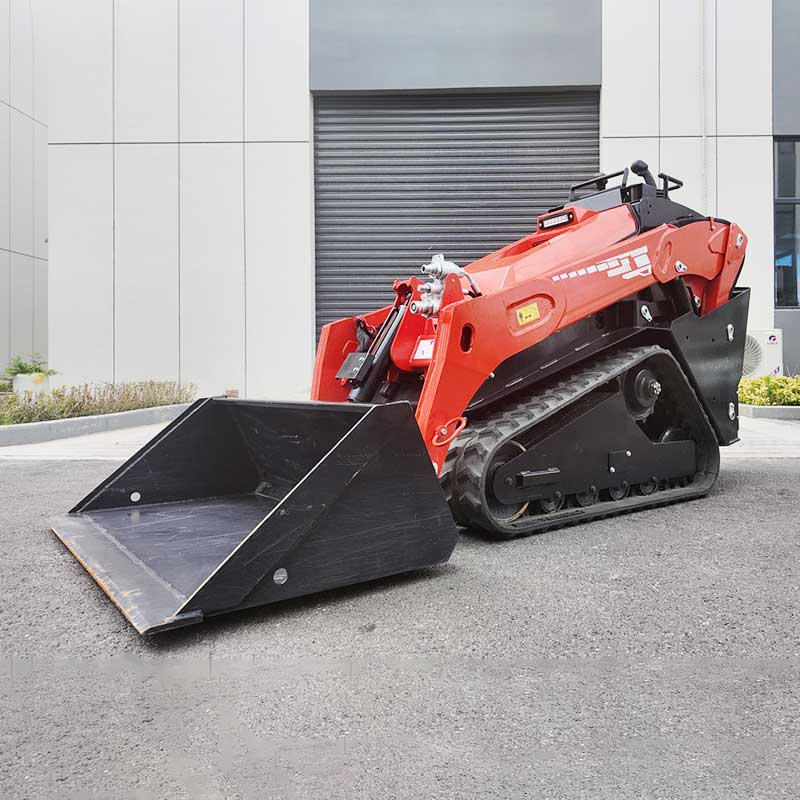

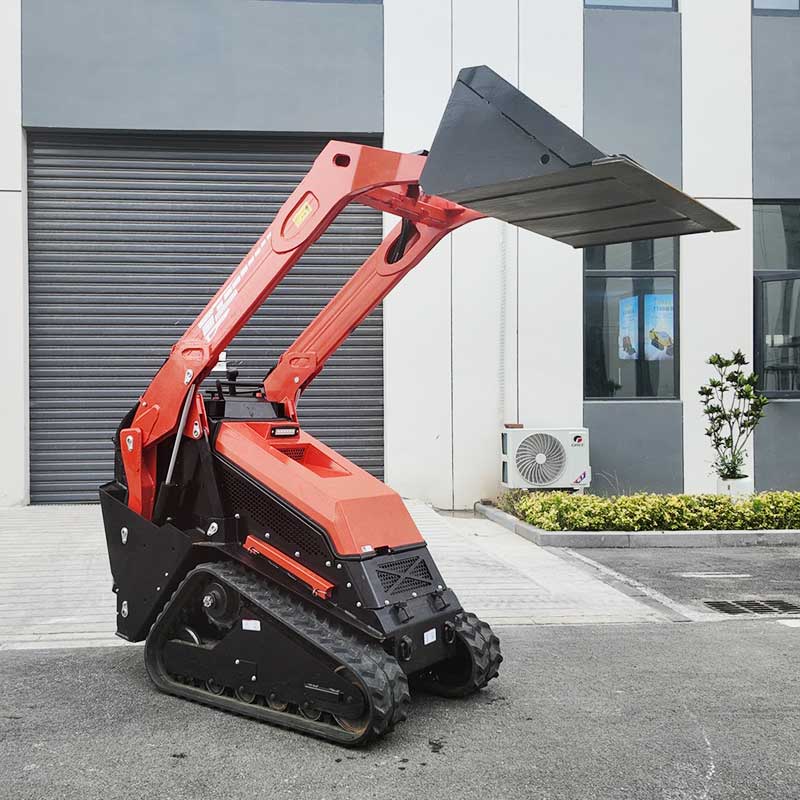

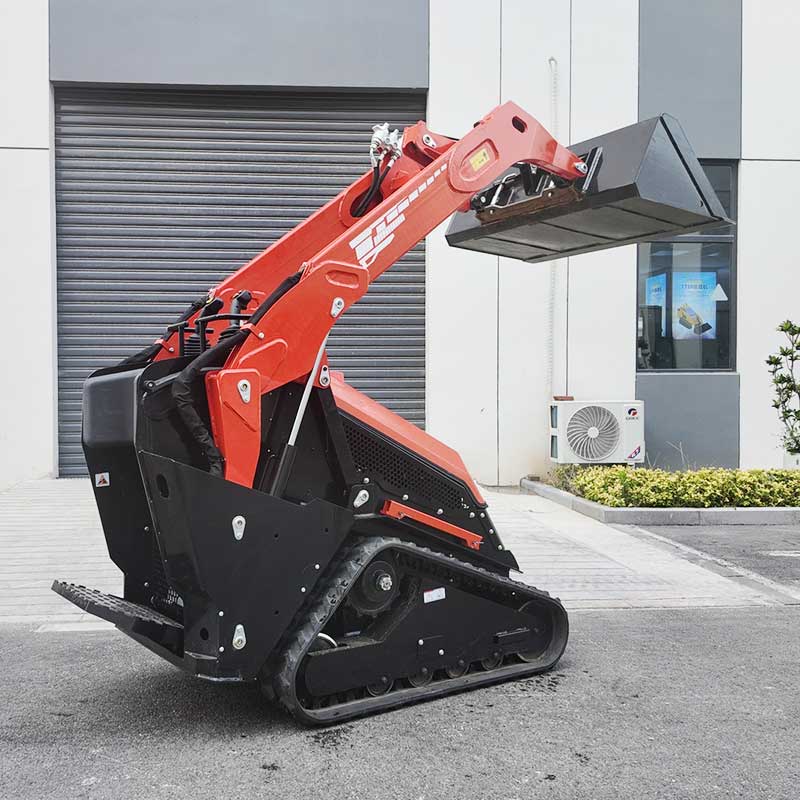

The V1000 High Performance Loader is designed for demanding working environments where operational flexibility, stability, and efficient material handling are essential. It is engineered to perform in compact job sites with uneven ground conditions and frequently changing task requirements, making it suitable for a wide range of construction and industrial applications.
With a compact structure and optimized performance configuration, this model is built to support continuous operation in confined spaces while maintaining reliable productivity. It is also suitable as auxiliary equipment in large-scale engineering projects where adaptability and precision handling are required.
The V1000 High Performance Loader is primarily used in working environments characterized by limited space, uneven terrain, and variable operational tasks. It is widely applied in infrastructure construction, industrial operations, dock loading and unloading, urban street maintenance, residential construction projects, barns, livestock facilities, airport runways, and similar working conditions.
In addition, it can function as auxiliary equipment for large-scale engineering machinery, providing efficient support for material handling, loading, and short-distance transport tasks in restricted or complex environments. Its compact design ensures smooth operation in areas where larger machinery cannot easily access.
The V1000 High Performance Loader is engineered to deliver consistent performance in both urban and industrial environments, ensuring adaptability across diverse construction scenarios.
| Item | Specification |
|---|---|
| Operating weight | 1892kg |
| Bucket capacity | 0.19m³ |
| Climbing ability | 25° |
| Maximum breakout force | 4.5KN |
| Rated load | 500kg |
| Maximum load | 650kg |
| Travel speed | 0–6km/h |
| Vehicle width | 960mm |
| Rated pressure | 17Mpa–20Mpa |
| Bucket width | 1240mm |
| Max loading height | 2102mm |
| Max dumping height | 1522mm |
| Max operating height | 2794mm |
| Height to bucket pin | 2140mm |
| Max bucket dump angle | 63° |
| Min height | 1548mm |
| Departure angle | 29° |
| Ground clearance | 200mm |
| Dumping distance | 498mm |
| Track contact length | 1080mm |
| Item | Specification |
|---|---|
| Overall dimensions | 2691 × 1240 × 1548mm |
| Length including bucket | 2691mm |
| Length excluding bucket | 1981mm |
| Track specification | 230 × 72 × 45 |
| Item | Specification |
|---|---|
| Brand | Yanmar / Kubota |
| Model | 3TNV80 / D1105 |
| Rated power | 15.2(17.8) / 17.1kw |
| Cylinder | 3 |
| Intake method | Natural inhalation |
| Emission standard | EPA / EURO5 |
| Fuel tank capacity | 40L |
The V1000 High Performance Loader is positioned as a compact yet powerful solution within the high performance loader category. It is designed to bridge efficiency and adaptability, offering stable operation in confined environments while maintaining strong load-handling capability for diverse construction and industrial applications.
We provide construction machinery, engineering equipment, pneumatic tools, and industrial machines suitable for global projects.
Yes, we offer OEM/ODM services, including modifications for working environment, machine structure, branding, and configuration.
All machines undergo strict inspection and operational testing. Core components are sourced from trusted suppliers to ensure durability and performance.
Yes, we have extensive export experience to over 100 countries, providing professional shipping, packaging, and documentation support.
We offer online technical guidance, maintenance assistance, spare parts supply, and troubleshooting support for global customers.
Our professional sales and technical teams ensure quick responses to inquiries, quotations, and technical questions.
