It is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residential buildings, barns, livestock sheds, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery.
Supports OEM/ODM modifications to meet different working conditions and project needs.

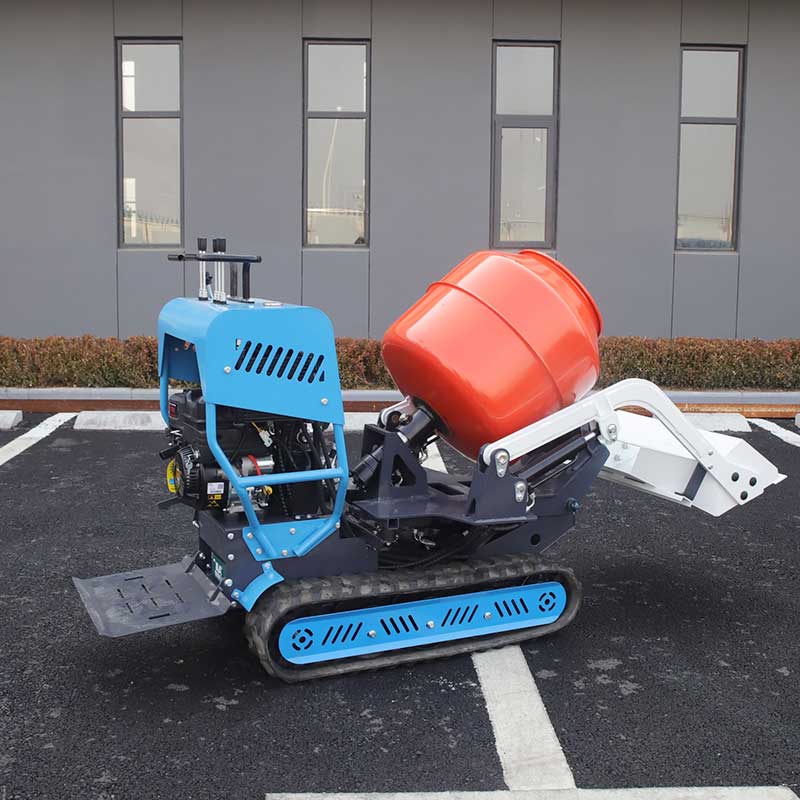

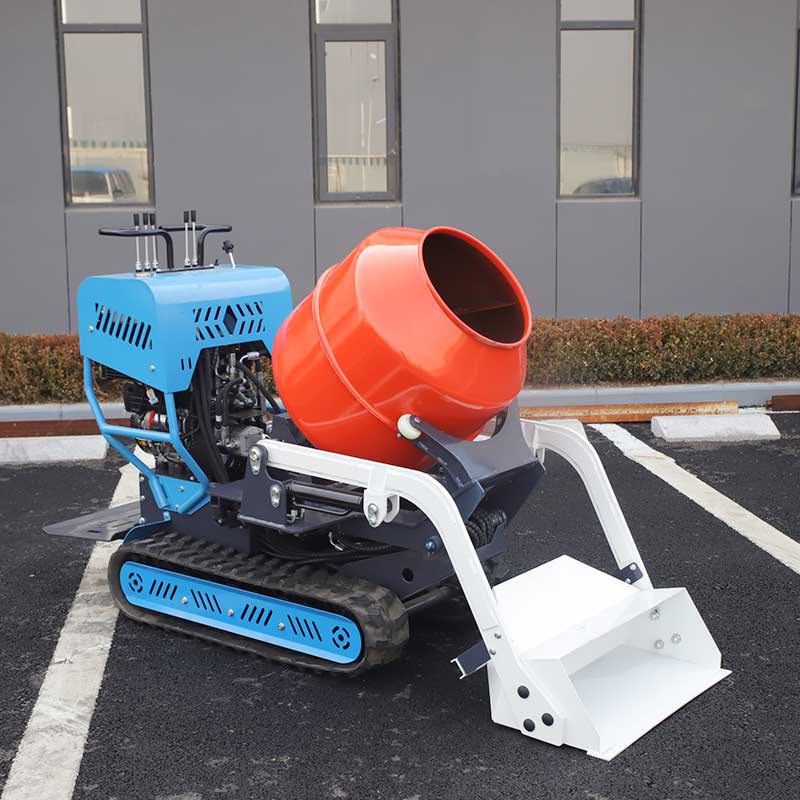

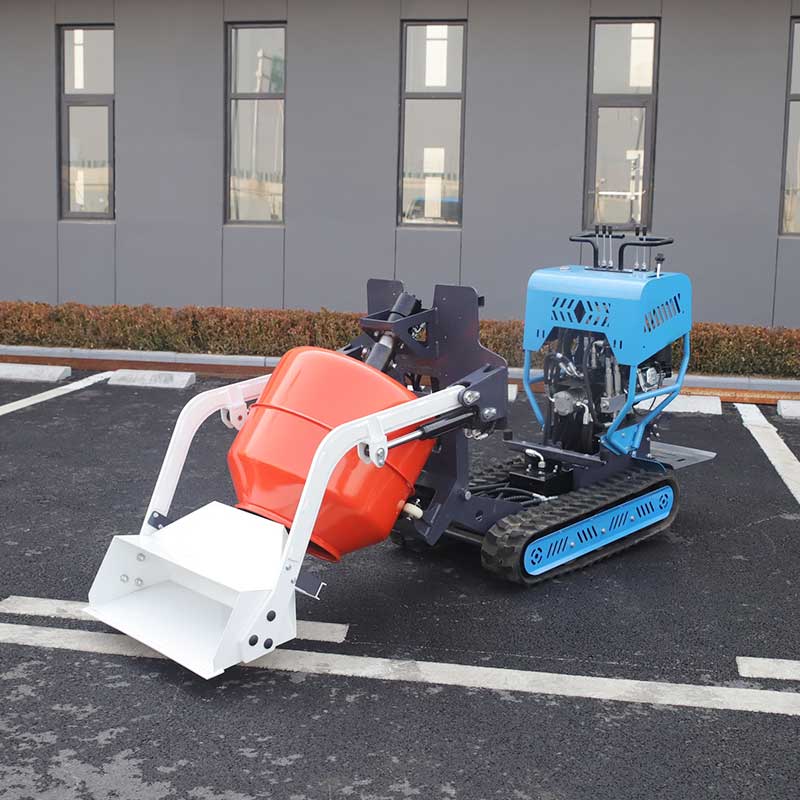

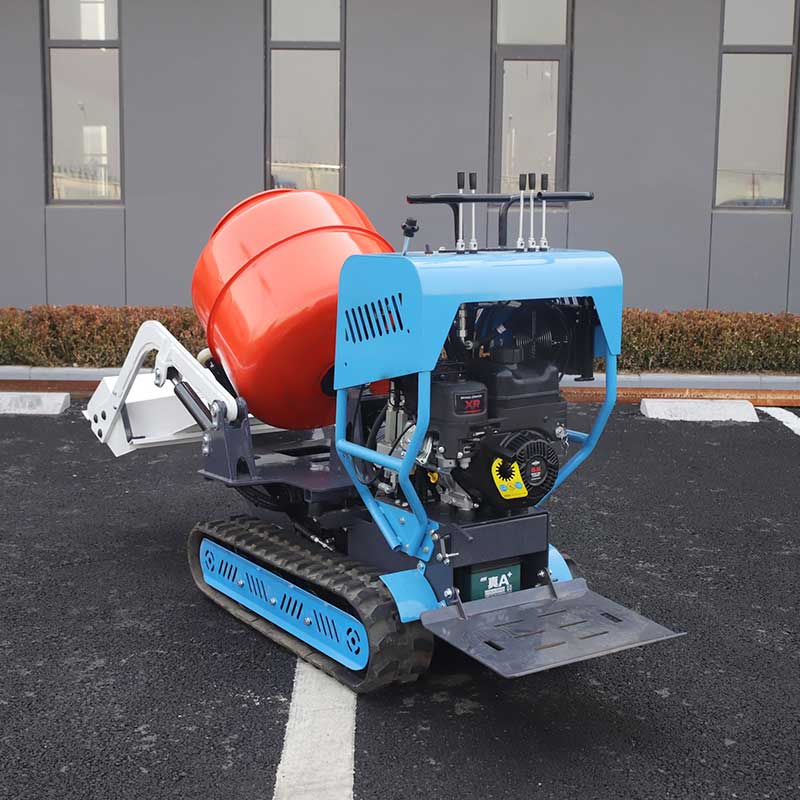

The T500 Skid Steer Mixer Bucket is designed as a compact and functional attachment solution for efficient on-site material mixing and handling. It integrates mixing and loading capabilities into a single system, making it suitable for construction environments that require flexible operation, space efficiency, and continuous workflow adaptability.
As a dedicated attachment for skid steer machinery, the T500 Skid Steer Mixer Bucket is engineered to support construction and engineering tasks where materials need to be mixed and transferred directly at the working site. Its compact structure allows stable operation in confined areas and supports consistent performance across varied job conditions.
The T500 Skid Steer Mixer Bucket is mainly used in working environments characterized by limited space, uneven terrain, and frequently changing operational requirements. It is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban street maintenance, residential building projects, barns, livestock sheds, airport runways, and other similar construction scenarios.
It also serves as auxiliary equipment for large-scale engineering machinery, providing efficient support for on-site material mixing, loading, and short-distance transport tasks. Its integrated design helps improve operational efficiency in environments where separate mixing equipment would be less practical.
The T500 Skid Steer Mixer Bucket is engineered to combine mixing efficiency with practical skid steer attachment functionality, ensuring stable performance in diverse construction scenarios.
| Item | Specification |
|---|---|
| Operating weight | 642kg |
| Cargo box capacity | 0.145m³ |
| Climbing ability | 20° |
| Maximum load | 200kg |
| Travel speed | 0.8–1.7km/h |
| Minimum turning radius | 1420mm |
| Track center distance | 825mm |
| Minimum ground clearance | 85mm |
| Track contact length | 825mm |
| Cargo box tilting angle | 90° |
| Mixing drum diameter | 600mm |
| Feed inlet diameter | 423mm |
| Mixing drum depth | 612mm |
| Bucket lifting height | 1622mm |
| Bucket lifting length | 1767mm |
| Unloading height from ground | 232mm |
| Item | Specification |
|---|---|
| Travel motor | 200mlr |
| Slewing motor | 200ml/r |
| Hydraulic dual pump | 2.7 + 2.7mlr |
| Item | Specification |
|---|---|
| Overall dimensions | 2155 × 800 × 1228mm |
| Overall height | 1228mm |
| Overall width | 800mm |
| Overall length | 2155mm |
| Item | Specification |
|---|---|
| Brand | Koop / Rato / B&S |
| Model | 178F / R210 / RX6.5 |
| Rated power | 4.21–4.78kw |
| Cylinder | 1 |
| Intake method | Naturally aspirated |
| Emission standard | EPA / EURO5 |
| Fuel tank capacity | 3.1L |
The T500 Skid Steer Mixer Bucket is positioned as a compact skid steer attachment designed for integrated mixing and handling operations. It provides a practical solution for construction and engineering projects requiring efficient on-site material processing within confined or variable working environments.
