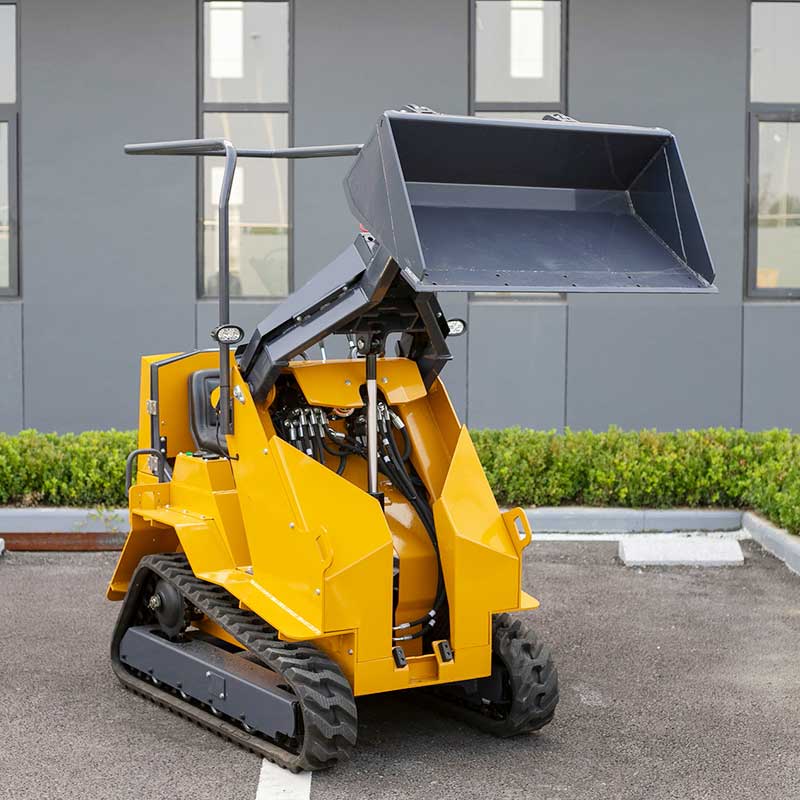

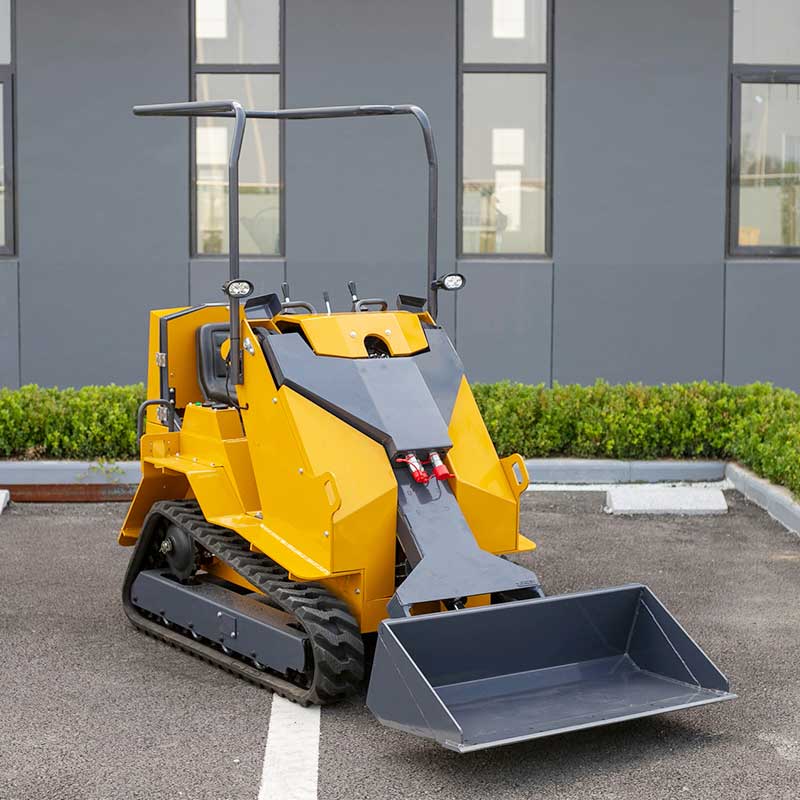

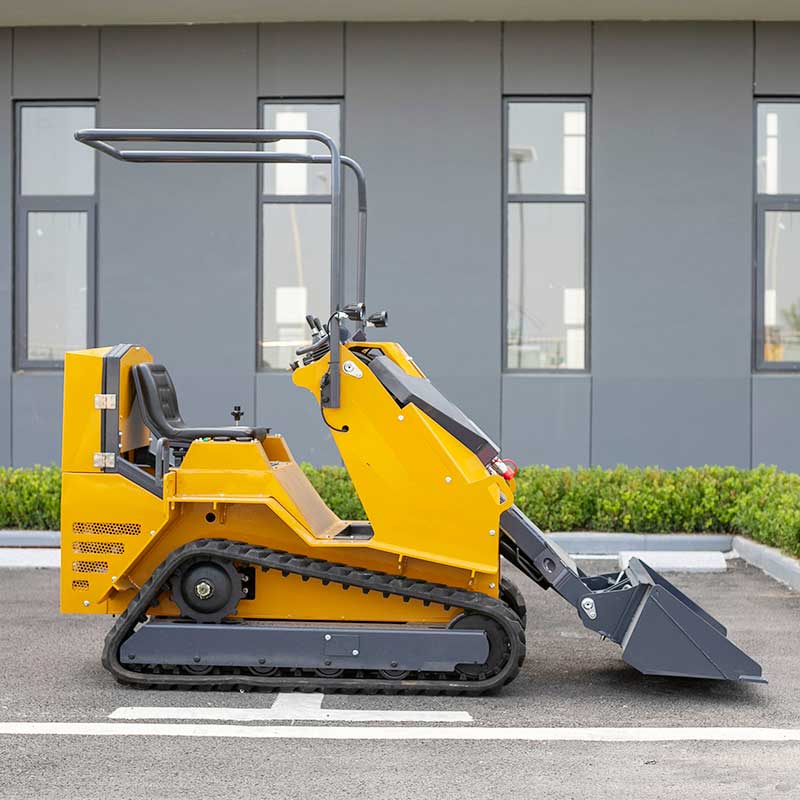

Product Overview: T390 Compact Track Loader
The T390 Compact Track Loader is designed for efficient operation in confined job sites where ground conditions are uneven and working tasks change frequently. As a reliable compact track solution, it delivers stable performance for material handling, loading, and transport operations across a wide range of construction and industrial environments.
Positioned within the compact track loader category, the T390 Compact Track Loader provides enhanced adaptability for complex terrain conditions while maintaining a compact structural design suitable for restricted working areas. It is also suitable as auxiliary equipment for large-scale engineering projects requiring flexible and precise loading support.
Product Applications of T390 Compact Track Loader
The T390 Compact Track Loader is primarily used in environments characterized by limited working space, uneven ground conditions, and frequently changing operational tasks. It is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residential buildings, barns, livestock sheds, airport runways, and similar working scenarios.
In addition, it can serve as auxiliary equipment for large-scale engineering construction machinery, supporting efficient material handling, short-distance transport, and loading operations in complex and restricted environments. Its track-based structure ensures stable operation on uneven surfaces compared with wheeled equipment.
Key Features of T390 Compact Track Loader
- Compact and flexible structure designed for efficient operation in narrow and confined spaces
- Track-based mobility system providing improved stability on uneven terrain
- Simple and convenient operation system supporting efficient daily use
- High-strength steel structure enhancing durability and structural reliability
- Anti-corrosion treatment improving resistance in demanding working environments
- 360-degree rotating body design enabling flexible maneuverability in tight job sites
The T390 Compact Track Loader is engineered to combine compact size with strong terrain adaptability, making it suitable for diverse construction and industrial applications requiring stable tracked performance.
Technical Specifications (Model T390)
Basic Performance Parameters
| Item | Specification |
|---|
| Operating weight | 1070kg |
| Bucket capacity | 0.1m³ |
| Climbing ability | 25° |
| Maximum breakout force | 3.5KN |
| Rated load | 250kg |
| Maximum load | 300kg |
| Travel speed | 0–5km/h |
| Vehicle width | 955mm |
| Rated pressure | 16Mpa |
| Bucket width | 1050mm |
| Max loading height | 1830mm |
| Max dumping height | 1404mm |
| Max operating height | 2488mm |
| Height to bucket pin | 1899mm |
| Max bucket dump angle | 63° |
| Min height | 1300mm |
| Departure angle | 40° |
| Ground clearance | 219mm |
| Dumping distance | 526mm |
| Track contact length | 1300mm |
Dimensions
| Item | Specification |
|---|
| Overall dimensions | 2282 × 1050 × 1300mm |
| Length including bucket | 2282mm |
| Length excluding bucket | 1880mm |
| Track model | 180 × 72 × 45 |
Engine System
| Item | Specification |
|---|
| Brand | KOOP / Rato / B&S |
| Model | 192FH / R420D / XR13.5 |
| Rated power | 7.6(7) / 7.9 / 9.92kw |
| Cylinder | 1 |
| Intake method | Natural inhalation |
| Emission standard | EPA / EURO5 |
| Fuel tank capacity | 5L |
Positioning Summary
The T390 Compact Track Loader is positioned as a lightweight tracked loading solution designed for stability and maneuverability in confined and uneven working environments. It provides consistent performance for construction, agricultural support, and industrial material handling tasks requiring compact tracked equipment.
