Supports OEM/ODM modifications to meet different working conditions and project needs.

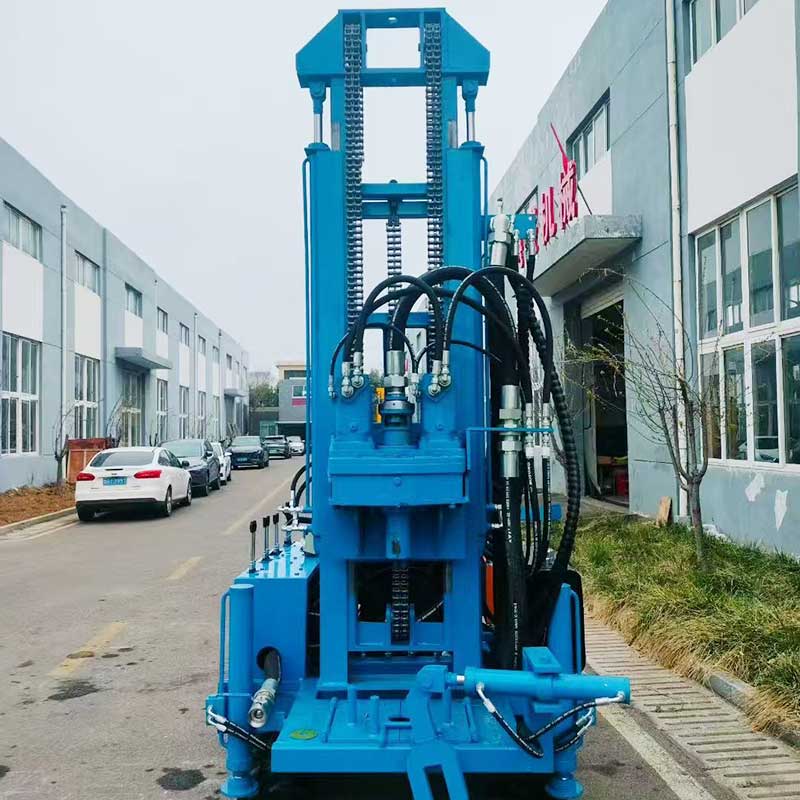

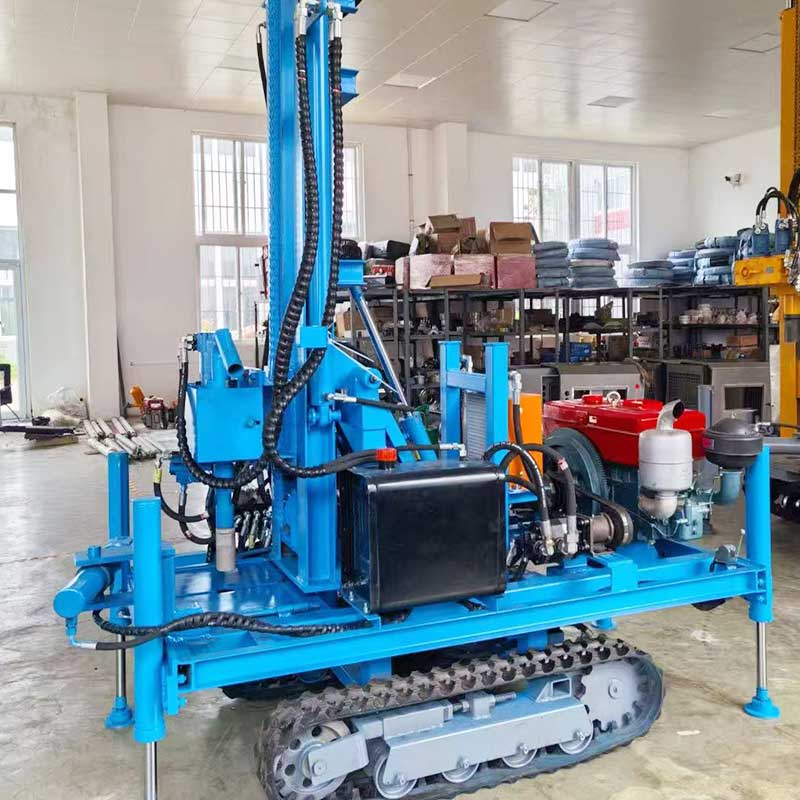

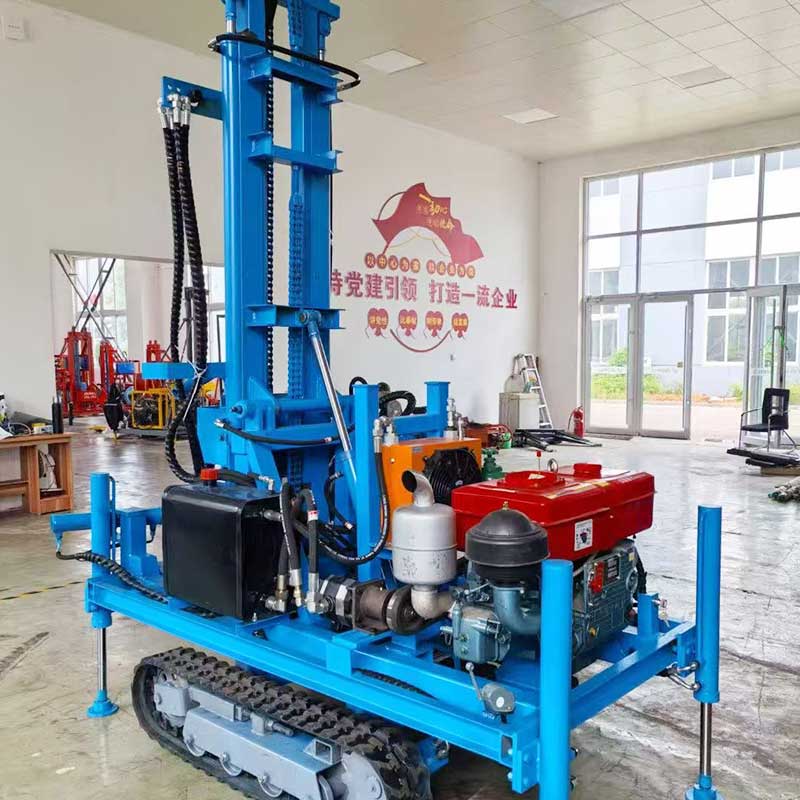

The JSC-150 Crawler Water Well Drilling Rig is designed for groundwater resource development, including domestic, agricultural, and industrial water well drilling projects. It is also suitable for hydrogeological exploration, construction engineering, and bridge foundation drilling applications. With a balanced configuration and stable operational structure, this model is engineered to deliver efficient performance across a wide range of drilling conditions.
The JSC-150 Crawler Water Well Drilling Rig is equipped with a branded diesel engine featuring an electric starting system. This design ensures reliable ignition performance while reducing manual effort for operators. The power system is optimized to support continuous drilling operations and maintain stable output for hydraulic transmission components under working conditions.
This model adopts a high-power hydraulic motor system, enabling the power head to rotate in both forward and reverse directions. The hydraulic configuration improves drilling adaptability across different geological formations. With a rotation speed range of 45–70rpm/min, the rig ensures stable drilling performance and consistent borehole formation.
The JSC-150 Crawler Water Well Drilling Rig supports multiple drilling hole diameters, including 60mm, 76mm, and 89mm. It provides a maximum drilling depth of 150m, making it suitable for medium-depth water well construction. The maximum opening diameter range of 300–510mm allows flexible adaptation to different drilling requirements and project conditions.
The rig is equipped with a tow bar and wheeled chassis, improving transportation efficiency between job sites. With a walking speed of 2.5KM/h, it can be easily relocated within working areas. This structure enhances field adaptability, especially for projects requiring frequent movement or multi-point drilling operations.
The JSC-150 Crawler Water Well Drilling Rig is independently developed to address the technical challenge of “easy drilling, difficult extraction.” The hoisting, loading, and unloading of drill rods are fully mechanized, reducing manual labor intensity and improving operational efficiency. This system also enhances safety and shortens overall drilling cycles.
The equipment features a compact structural layout with overall dimensions of 220014002200. It operates under a working pressure range of 1.7–3.0MPa, ensuring stable hydraulic performance during drilling operations. With a total weight of 2.5T, the machine achieves a strong balance between stability and mobility, making it suitable for various construction environments.
The JSC-150 Crawler Water Well Drilling Rig is widely used in:
It is suitable for general-purpose drilling requirements with stable performance and adaptable field operation capability.
| Parameter | Value |
|---|---|
| Engine | Diesel engine power with electric start |
| Drilling hole diameter | 60 / 76 / 89 mm |
| Drilling depth | 150 m |
| Walking speed | 2.5 km/h |
| Rotation speed | 45–70 rpm/min |
| Max opening diameter | 300–510 mm |
| Work pressure | 1.7–3.0 MPa |
| Dimensions | 2200 × 1400 × 2200 |
| Weight | 2.5T |
