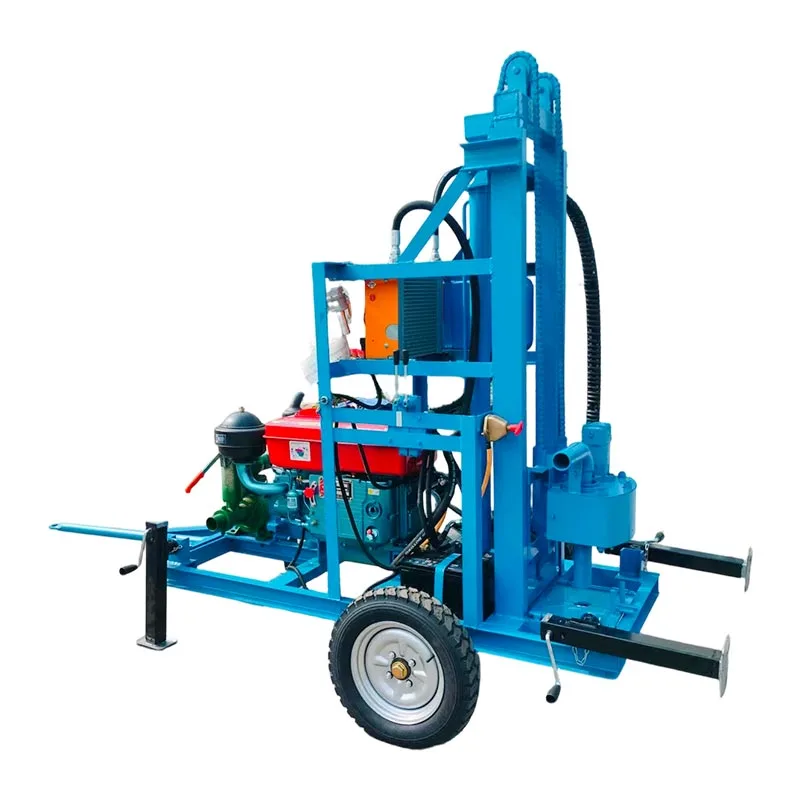

The JSL-150 Compact High Torque Drilling Rig is a compact water well drilling machine designed for efficient groundwater development, construction projects, and hydrogeological exploration. With high torque output and a flexible drilling range, it performs reliably in hard soil and complex working environments while maintaining strong mobility for narrow or restricted job sites.
Supports OEM/ODM modifications to meet different working conditions and project needs.
The JSL-150 Compact High Torque Drilling Rig is designed for efficient water well drilling operations that require strong torque output within a compact structural design. It is widely applied in groundwater development, domestic and agricultural water supply projects, construction engineering, and hydrogeological exploration. Compared with standard and heavy-duty drilling rigs, this model focuses on compact mobility and high torque performance, making it suitable for narrow work sites and complex terrain conditions.
The JSL-150 Compact High Torque Drilling Rig is equipped with a branded diesel engine featuring an electric starting system. This ensures stable ignition performance and reduces operator workload during operation. The power system is designed to provide continuous and reliable energy output for hydraulic drilling operations under varying field conditions.
This model adopts a high-power hydraulic motor system, enabling the power head to rotate both forward and backward. As a JSL-150 Compact High Torque Drilling Rig, its key advantage lies in the 3500Nm rotary torque, which significantly enhances drilling capability in harder soil layers and complex geological formations. This high torque performance improves penetration efficiency and drilling stability compared with conventional drilling rigs.
The JSL-150 Compact High Torque Drilling Rig supports a drilling hole diameter range from 50mm to 300mm and a maximum drilling depth of 150m. It is compatible with 50mm and 60mm drill pipes, allowing flexible configuration based on different project requirements. This wide adaptability makes it suitable for both small-scale water wells and general construction drilling applications.

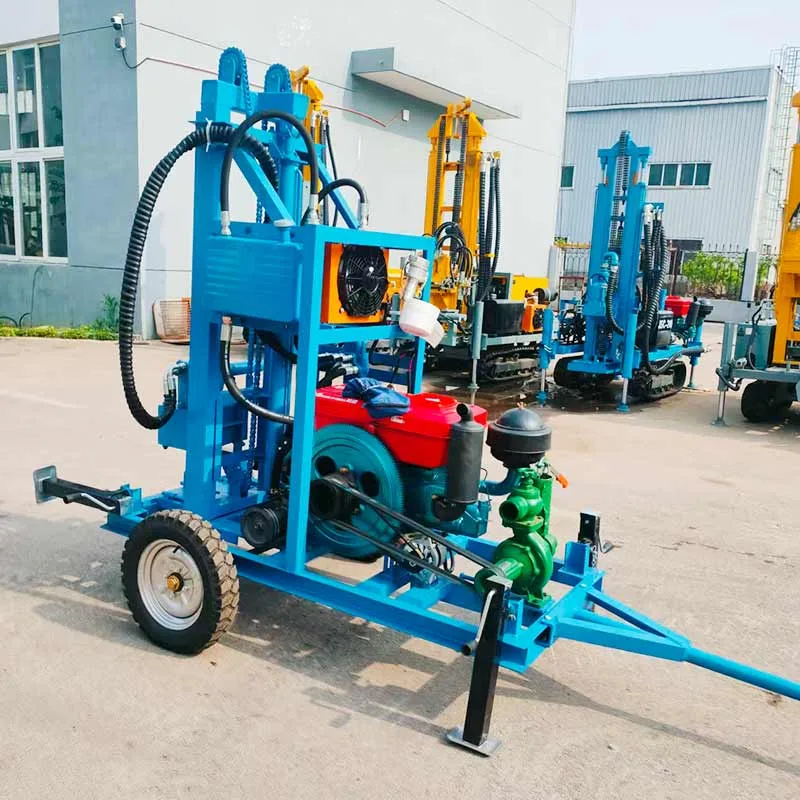

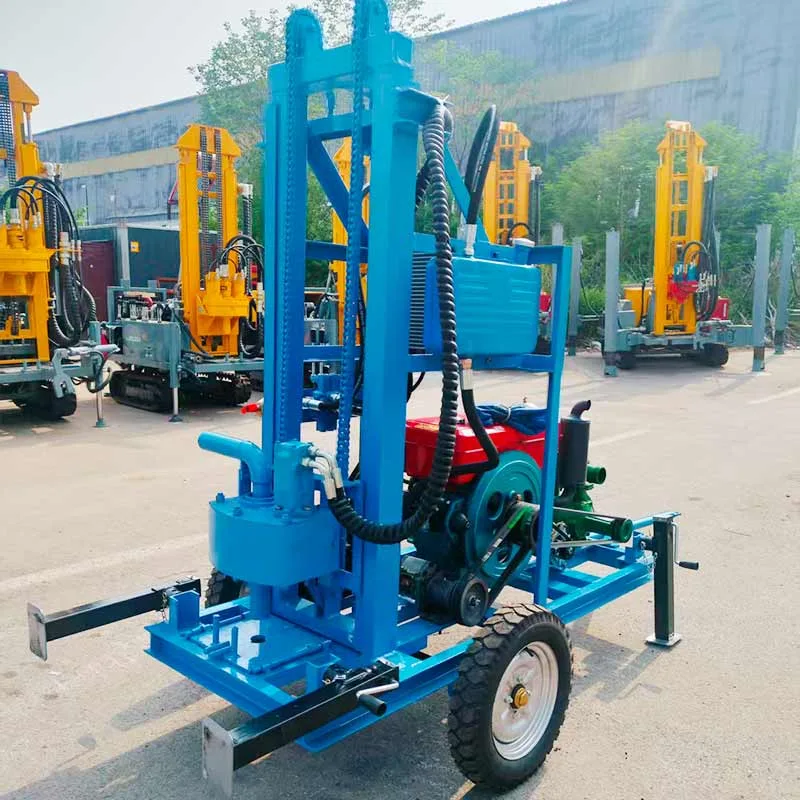

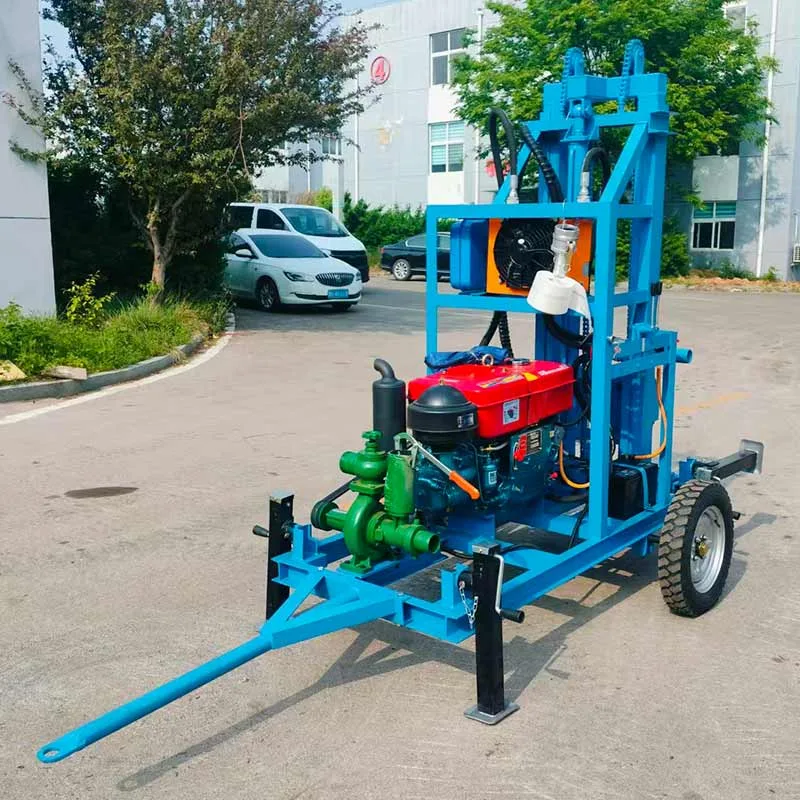

Designed as a compact unit, the JSL-150 Compact High Torque Drilling Rig features a wheeled chassis and tow bar system for easy transportation between job sites. With a walking speed of 2.5KW/h, it can be conveniently moved within working areas. The compact dimensions of 18009602100 make it especially suitable for narrow spaces and restricted working environments where larger rigs cannot operate effectively.
The equipment is independently developed to solve the technical challenge of “easy drilling, difficult extraction.” The hoisting, loading, and unloading of drill rods are fully mechanized, reducing manual labor and improving overall operational efficiency. This design supports safer and more continuous drilling operations while minimizing downtime.
The JSL-150 Compact High Torque Drilling Rig operates under a working pressure range of 1.7–3.0MPa, ensuring stable hydraulic performance during drilling tasks. With a total weight of 2T, the machine maintains a balanced structure that supports both operational stability and mobility across different terrain conditions.
The JSL-150 Compact High Torque Drilling Rig is widely used in:
Its compact structure combined with high torque output makes it suitable for projects requiring both power and flexibility.
| Parameter | Value |
|---|---|
| Engine | Diesel engine power with electric start |
| Drilling hole diameter | 50–300 mm |
| Drilling depth | 150 m |
| Walking speed | 2.5 km/h equivalent |
| Rotary torque | 3500 Nm |
| Applicable drill pipe | 50 / 60 mm |
| Lifting force | 1.7–3.0 MPa |
| Specifications | 18009602100 |
| Weight | 2T |
