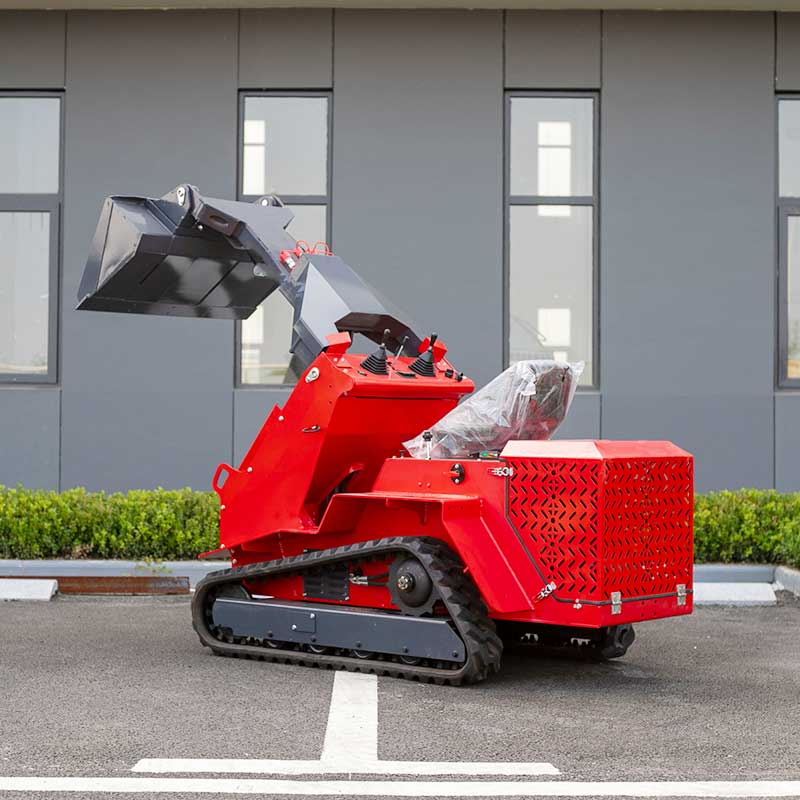

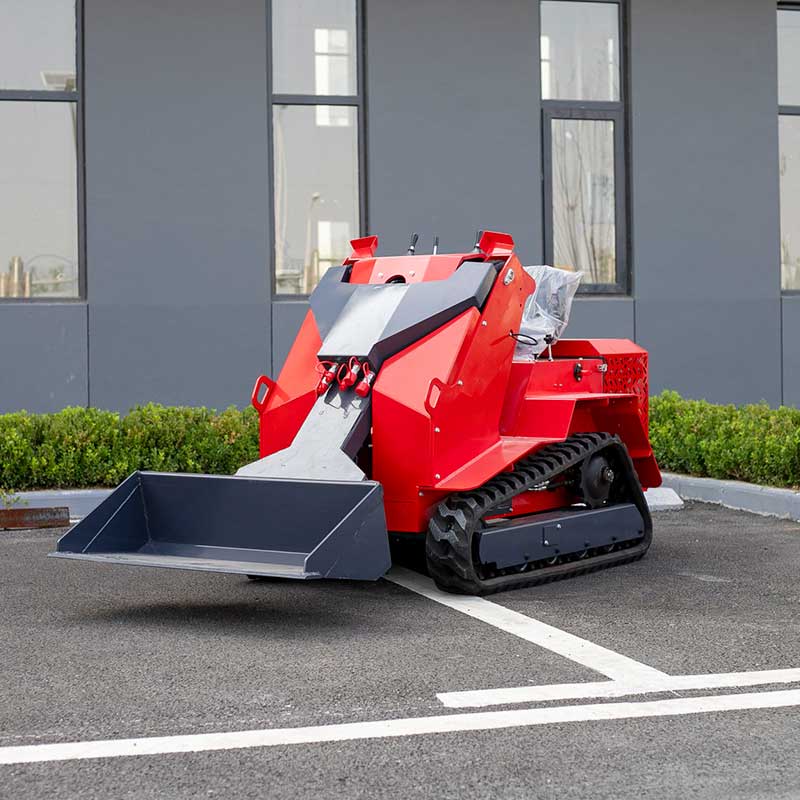

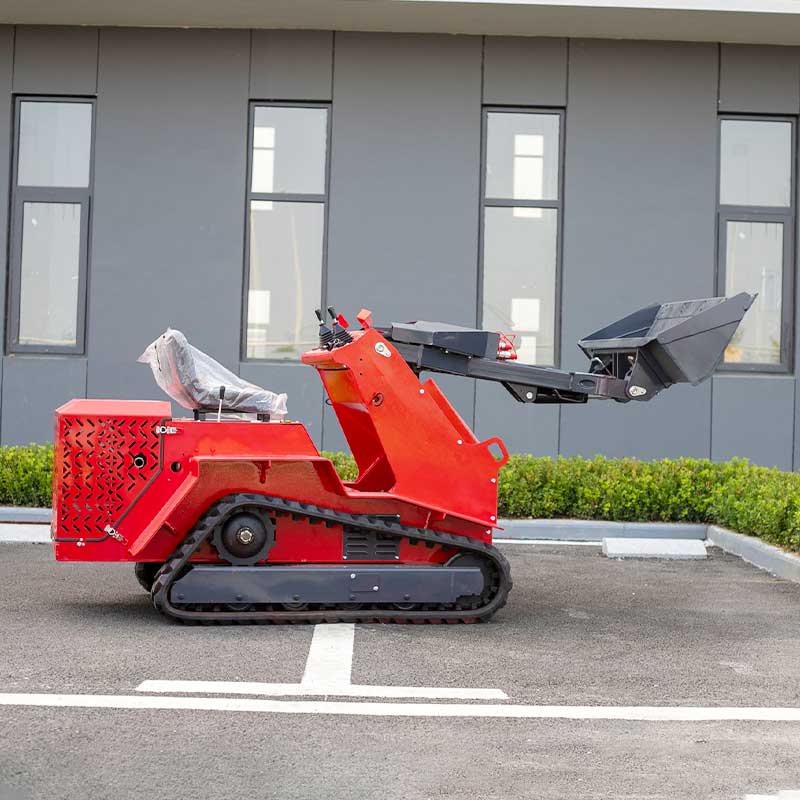

Product Overview: T490 Multi-Power Loader
The T490 Multi-Power Loader is designed for efficient operation in compact job sites where working conditions are frequently changing and terrain may be uneven. It provides stable performance for material handling, loading, and transport tasks across construction, industrial, and municipal applications that require adaptable and multi-functional equipment.
As a multi-power loader solution, the T490 Multi-Power Loader integrates flexible power configuration options with a compact structural design, supporting consistent performance in both confined and open working environments. It is also suitable as auxiliary equipment for large-scale engineering projects that require reliable and adaptable loading support.
Product Applications of T490 Multi-Power Loader
The T490 Multi-Power Loader is primarily used in environments characterized by limited working space, uneven ground conditions, and frequently changing operational tasks. It is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residential buildings, barns, livestock sheds, airport runways, and similar working scenarios.
In addition, it can function as auxiliary equipment for large-scale engineering machinery, supporting loading, short-distance transport, and material handling tasks in complex environments. Its compact design and adaptable power system make it suitable for multi-condition operations where flexibility is required.
Key Features of T490 Multi-Power Loader
- Compact and flexible structure designed for efficient operation in narrow and restricted spaces
- Multi-power adaptability supporting different power configurations for varied working requirements
- Simple and user-friendly operation system for improved work efficiency
- High-strength steel construction ensuring durability and structural stability
- Anti-corrosion treatment enhancing resistance in demanding environments
- 360-degree rotating body design enabling flexible maneuverability in tight job sites
The T490 Multi-Power Loader is engineered to deliver stable performance while maintaining operational flexibility across diverse working conditions, making it suitable for modern multi-purpose loading tasks.
Technical Specifications (Model T490)
Basic Performance Parameters
| Item | Specification |
|---|
| Operating weight | 1305kg |
| Bucket capacity | 0.1m³ |
| Climbing ability | 25° |
| Maximum breakout force | 4.5KN |
| Rated load | 250kg |
| Maximum load | 350kg |
| Travel speed | 0–5km/h |
| Vehicle width | 1089mm |
| Rated pressure | 16Mpa |
| Bucket width | 1150mm |
| Max loading height | 1700mm |
| Max dumping height | 1402mm |
| Max operating height | 2489mm |
| Height to bucket pin | 1900mm |
| Max bucket dump angle | 63° |
| Min height | 1300mm |
| Departure angle | 15° |
| Ground clearance | 220mm |
| Dumping distance | 580mm |
| Track contact length | 1330mm |
Dimensions
| Item | Specification |
|---|
| Overall dimensions | 2535 × 1150 × 1300mm |
| Length including bucket | 2535mm |
| Length excluding bucket | 2100mm |
| Track contact length | 180 × 72 × 45 |
Power System
| Item | Specification |
|---|
| Power type | Lithium electric / engine options |
| Model options | Lithium iron phosphate / 292+ / R740 / Vanguard23 |
| Rated power | 8kw, 72V, 200ah / 15 / 16.8 / 17kw |
| Cylinder | 2 |
| Intake method | Natural inhalation |
| Emission standard | EPA / EURO5 |
| Fuel tank capacity | 10L |
Positioning Summary
The T490 Multi-Power Loader is positioned as a compact and adaptable multi-power loading solution designed for diverse working environments. It combines flexible power options with stable operational performance, making it suitable for construction, industrial, and multi-scenario material handling applications.
