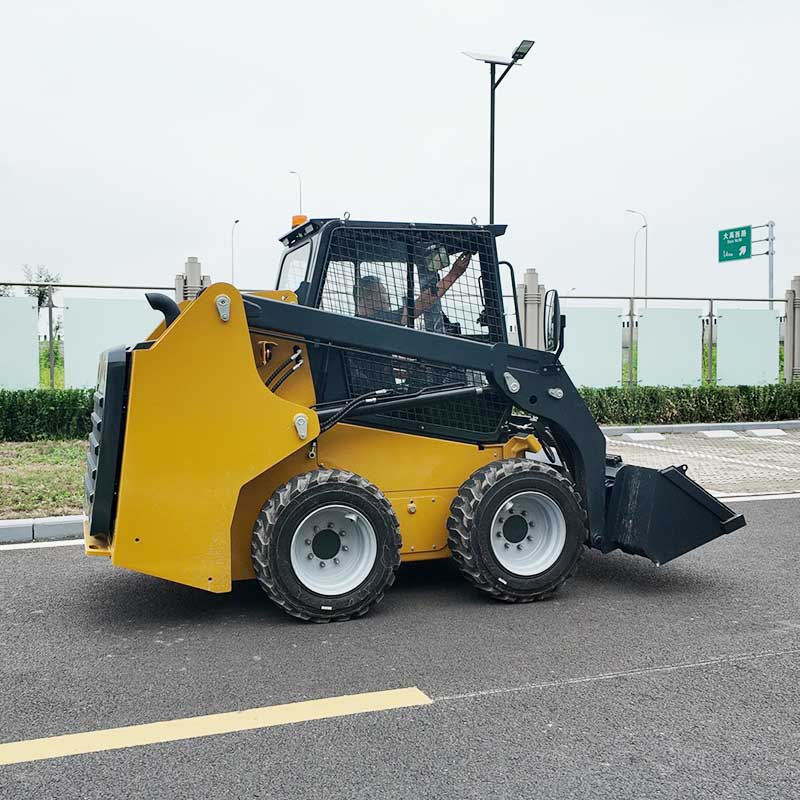

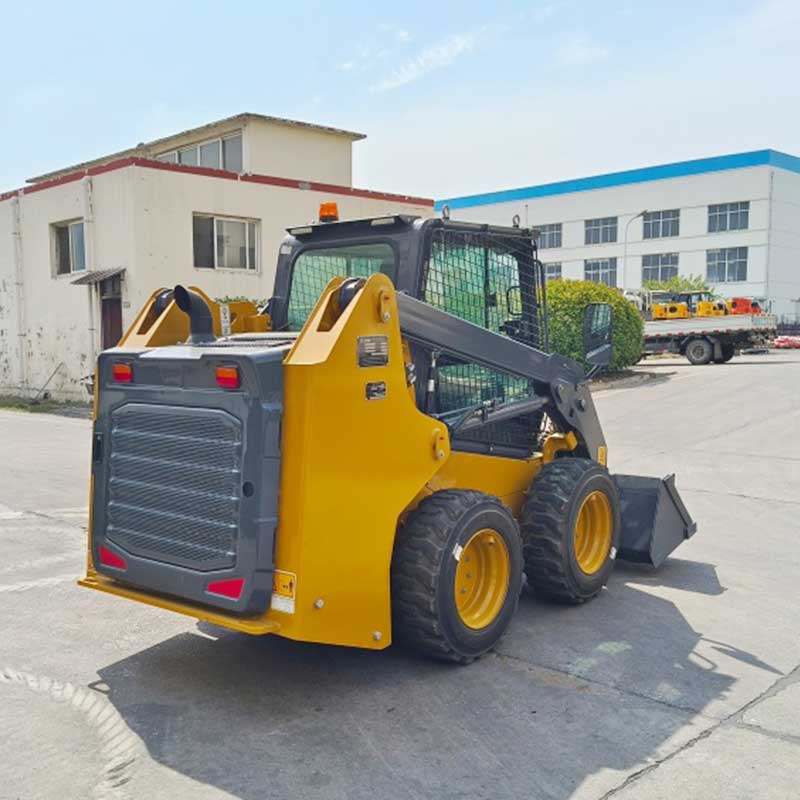

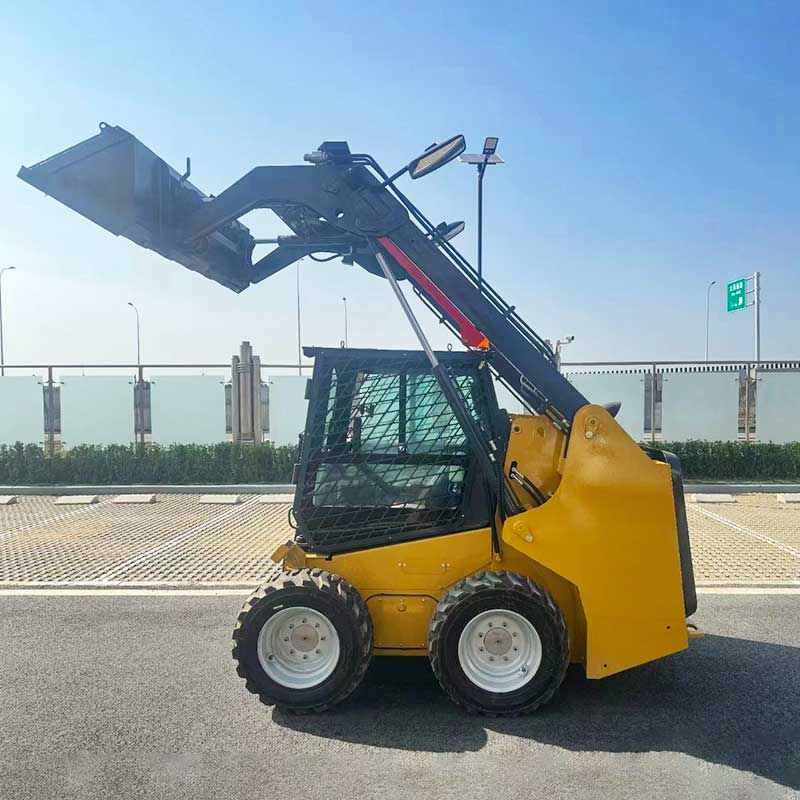

Product Overview: S55 Light Duty Loader
The S55 Light Duty Loader is designed for efficient material handling in environments that require stable performance, maneuverability, and operational flexibility. It is engineered for use in confined workspaces, uneven terrain, and job sites where tasks change frequently, making it suitable for a wide range of light to medium-duty construction and industrial applications.
As part of the light duty loader category, the S55 Light Duty Loader combines compact design with reliable working capacity, enabling consistent performance in both urban and semi-industrial environments. It also serves as auxiliary equipment for larger engineering systems where flexible and efficient loading support is required.
Product Applications of S55 Light Duty Loader
The S55 Light Duty Loader is primarily used in working environments characterized by limited space, uneven ground conditions, and frequently changing operational tasks. It is suitable for infrastructure construction, industrial applications, dockside cargo handling, urban street maintenance, residential areas, granaries, livestock barns, airport runways, and other similar working scenarios.
In addition, it can function as auxiliary equipment for large-scale engineering machinery, supporting loading, material handling, and short-distance transport tasks in restricted or complex environments. Its design ensures stable adaptability across multiple job site conditions.
Key Features of S55 Light Duty Loader
- Compact and flexible structure designed for efficient operation in narrow and confined spaces
- User-friendly control system supporting simple and convenient operation
- High-strength steel construction enhancing durability and structural stability
- Anti-corrosion surface treatment improving resistance in demanding environments
- 360-degree rotating body design enabling flexible maneuverability in complex job sites
- Stable hydraulic system supporting consistent working performance
The S55 Light Duty Loader is engineered to maintain reliable operational output while ensuring adaptability across diverse light duty working environments.
Technical Specifications (Model S55)
Basic Performance Parameters
| Item | Specification |
|---|
| Operating weight | 3845kg |
| Bucket capacity | 0.4m³ |
| Climbing ability | 25° |
| Maximum breakout force | 25KN |
| Rated load | 890kg |
| Maximum load | ≥1780kg |
| Travel speed | 0–12km/h |
| Hydraulic flow rate | 55L/min |
| Hydraulic pressure | 21Mpa |
| Bucket width | 1800±2%mm |
| Max loading height | 2846±5%mm |
| Max dumping height | 2384±5%mm |
| Max operating height | 3790mm |
| Height to bucket pin | 3020mm |
| Max bucket dump angle | 63° |
| Min height | 2095±5%mm |
| Tail length | 1160±5%mm |
| Ground clearance | 185±2%mm |
| Dumping distance | 520±1%mm |
| Wheelbase | 1200mm |
Dimensions
| Item | Specification |
|---|
| Overall dimensions | 3450 × 1800 × 2095mm |
| Length including bucket | 3450mm |
| Length excluding bucket | 2700mm |
| Tire model | 10-10.5 |
Engine System
| Item | Specification |
|---|
| Brand | Yanmar / Cummins |
| Model | 4TNV80 / HFC4DA1-2C3 |
| Rated power | 35.5 / 36.8kw |
| Cylinder | 4 |
| Intake method | Natural inhalation |
| Emission standard | EPA / EURO5 |
| Fuel tank capacity | 80L |
Positioning Summary
The S55 Light Duty Loader is positioned as a reliable light-duty loading solution designed for versatile applications in construction, urban maintenance, and industrial support operations. It delivers stable hydraulic performance and flexible maneuverability, making it suitable for diverse working environments requiring efficient material handling.
